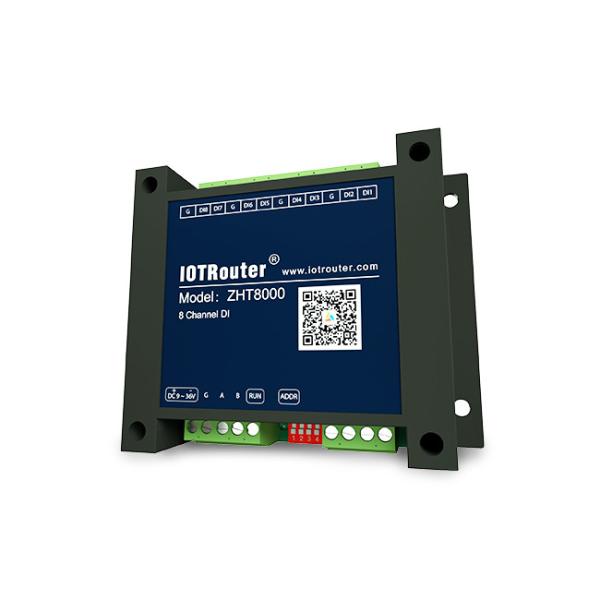

Modbus RTU Remote IO Module Data Transceiver Interface Extension Module

Brand Name : IOTROUTER

Model Number : ZHT8000

Certification : CE FCC RoHs

Place of Origin : Sichuan, CHINA

MOQ : 1PCS

Price : USD22~28/PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/MONTH

Delivery Time : 1 WEEK

Packaging Details : 270*180*55mm CARTON PACKAGE

Material : PLASTIC

Interface : RS485/8DI

Product Name : Modbus RTU Remote IO Module

Protocol : MODBUS RTU

Function : Interface Extension

Application : IOT Monitoring

Working Voltage : 12V

Module Type : RS485

Customized : Support

Color : Black

Contact Now

Modbus RTU Remote IO Module Data Transceiver Interface Extension Module

Parameters of Remote IO Module ZHT8000

DATASHEET
1
Module Size
115*90.5*41mm
2
Acquisition Channel
8 Channel relay input
3
Serial Interface
RS485
4
Supply Voltage
5 ~ 36V DC
5
Working Current
12V/50mA
6
Operating Temperature
-40℃~+65℃

  • Introduction​ of Remote IO Module ZHT8000

ZHT8000 is a serial port control module that provides 8 DI and 1 RS485 interfaces, supports standard Modbus RTU protocol, supports dry and wet node detection, which can be widely used in various types of switch data acquisition Application scenario. It's simple and convenient for clients to use, also we provide comprehensive technical support.

RS485 communication wiring
ZHT8000 contains 1 485 interface, multiple devices can be cascaded through 485 bus. Each module can set the address, the address ranges from 1-30. The maximum communication distance of the 485 bus is 1200 meters, and the communication distance can be increased through the 485 relay according to the actual application environment.

Function of Remote IO Module ZHT8000

ZHT8000 has 8-channel switch alarm input, which can be connected with infrared alarm switch, proximity switch, access control switch and other equipment.ZHT8000 is divided into dry contact input circuit and wet contact input circuit.

Modbus RTU Remote IO Module Data Transceiver Interface Extension Module

Modbus RTU Remote IO Module Data Transceiver Interface Extension Module

Modbus RTU Remote IO Module Data Transceiver Interface Extension Module

Modbus RTU Remote IO Module Data Transceiver Interface Extension Module

Modbus RTU Remote IO Module Data Transceiver Interface Extension Module

ZHT8000
RS485 Modbus √
8 Channel Relay Input √
Standard Modbus Protocol √
